Powder Coating Services

Powder Coating Services
[click to enlarge]
Powder Coating Services


Kappers Fabricating is honored to provide powder coating application for a wide range of ferrous and non-ferrous metals with interior and exterior uses. We offer a wide range of powder chemistries such as Epoxy, Hybrids, Urethane, Polyesters and TGIC Polyesters, available in solid colors and metallic. Kappers also offers texture coatings and wrinkle finishes from matte to high gloss. Kappers works with some of the best powder coatings manufactures in the world such as Dupont, Diamond Vogel, Azko-Nobel, Cardinal and Sherwin-Williams to name just a few.

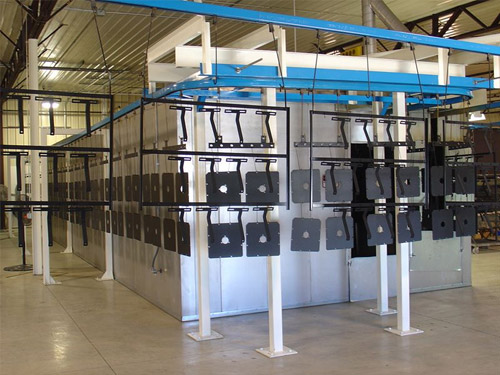

At Kappers, the current application process on our conveyorized electrostatic spray coating line is carried out by a 10 gun Wagner powder spray system and a Wagner 2 gun manual spray to waste powder booth. Our window maximum size and weight of each part is up to 75'' long x 30''wide x 50'' high at 125 lbs. per hook. For parts too large for our conveyorized system, we have a batch booth and batch oven capable of handling part sizes up to 90'' wide x 90 ''high x 168 '' long.

Additionally, Kappers Fabrication also offers pre-coating preparation, consulting, development, engineering and welding services, to accommodate a range of industry applications. To learn more about Kappers Fabrication, please contact us today.

Quote Request

Specifications

General CapabilitiesContract
OEM (Original Equipment Manufacturer)
Production
Prototype
Small Parts
Industry FocusAgricultural
Automotive/Transportation
Building
Construction
Electronic
Lawn & Garden
Marine
Medical
Railroad
Recreational
Signage
Industry StandardsANSI (American National Standards Institute)
ASME (American Society of Mechanical Engineers)
ASTM (American Society for Testing and Materials)
AWS (American Welding Society)
Mil-Spec (Military Specifications)
QS (QS Is a quality standard developed by the Automotive Industries.)
RoHS Compliant (Restriction Of Hazardous Substances)
SAE (Society of Automotive Engineers)
CoatingEpoxy
High Temperature
Hybrid
Polyester
TGIC
Urethane
SubstrateAluminum
Ferrous & Non - Ferrous Metals
Coating CharacteristicsAbrasion Resistant
Antimicrobial
Chemical Resistance
Condensation Resistant
Exterior Durability
High Temperature
Production VolumePrototype to High Volume
Application ProcessAutomated Booth
Baked
Batch
Continuous
Conveyorized
Electrostatic
High Velocity
Spray
Thermal Evaporation
Thermal Spray
PreCoating Preparation5 Stage Wash System, Using nano Green Technologies
Shot Blasting
Powder Coating Equipment2 Station Wagner Quick Change Spray to Waste Booth
Batch Oven: 90"x 90" x 168"
3 Tier Pallet Racking: 75' x 90'
700ft Conveyor Paint Line
5 Stage Washer
10 Gun Wagner Automatic Reclaim Booth
Panghorn Wheelabrator (Conveyorized Shot Blast System)
  • Part window 30"W x 50"H
  • Conveyorized
Additional ServicesConsulting
Development
Engineering
Welding
Part Length
 Max:
Line
75 in
Batch
168 in
4267.2 mm
Part Width
 Max:
Line
30 in
Batch
90 in
2286 mm
Part Height
 Max:
Line
50 in
Batch
90 in
2286 mm
Weight Capacity (Conveyer Line)125 lbs per Hook
